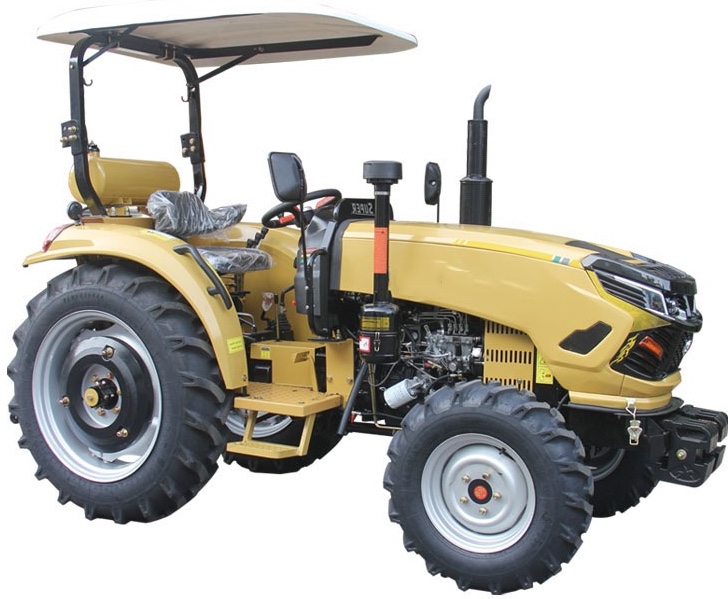

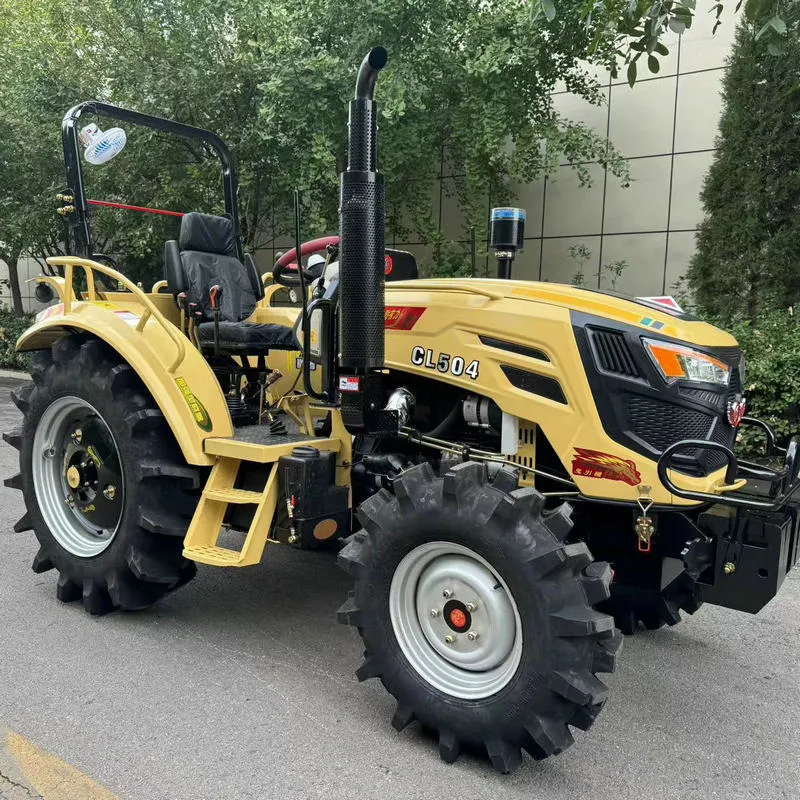

🚜 120HP 4WD Agricultural Tractor
Water & Dry Field Master, Powerful, Versatile, and Built for Demanding Farm Work
Conquer any terrain with this robust 120HP diesel tractor. Designed for heavy-duty plowing, rotary tilling, and hauling, this 4WD machine delivers exceptional traction and fuel efficiency in both paddy fields and dry land. The combination of high ground clearance and dual-speed PTO ensures seamless attachment performance for all your implements.
Why Choose This Tractor?
True 4-Wheel Drive Capability: Superior grip and reduced slippage in muddy or uneven terrain.Dual-Speed PTO (540/720 RPM): Perfect compatibility with a wide range of rotary tillers, mowers, and harvesters.

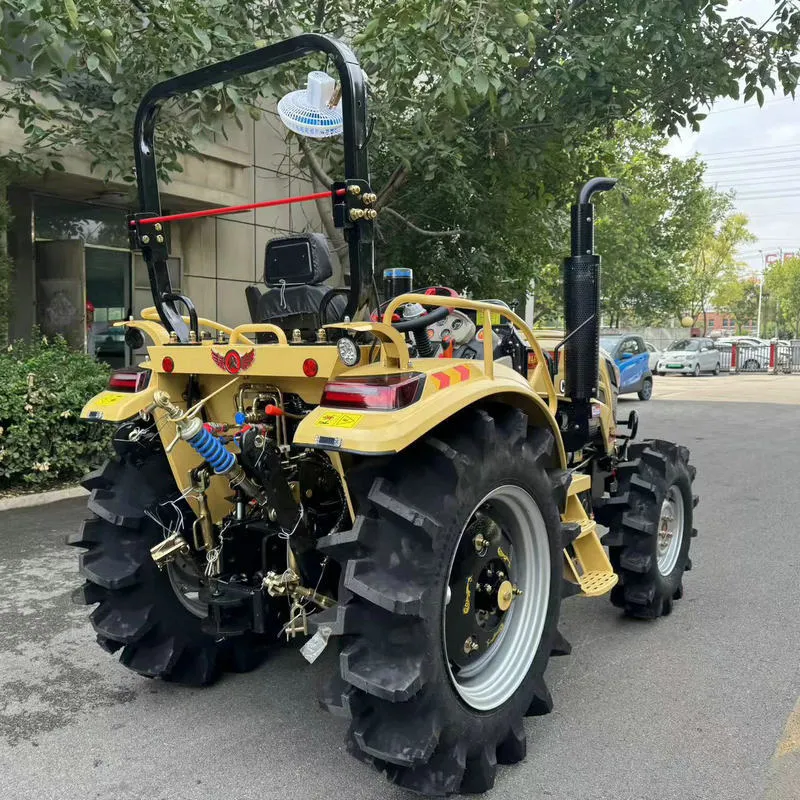

Heavy-Duty 3-Point Hitch: Reliable hydraulic lifting with precise depth control for consistent plowing.
High Ground Clearance (320mm): Protects the undercarriage and crops during field operations.
Balanced Weight Distribution: Optimized front (42kg) and rear (70kg) ballast for stable heavy pulling.

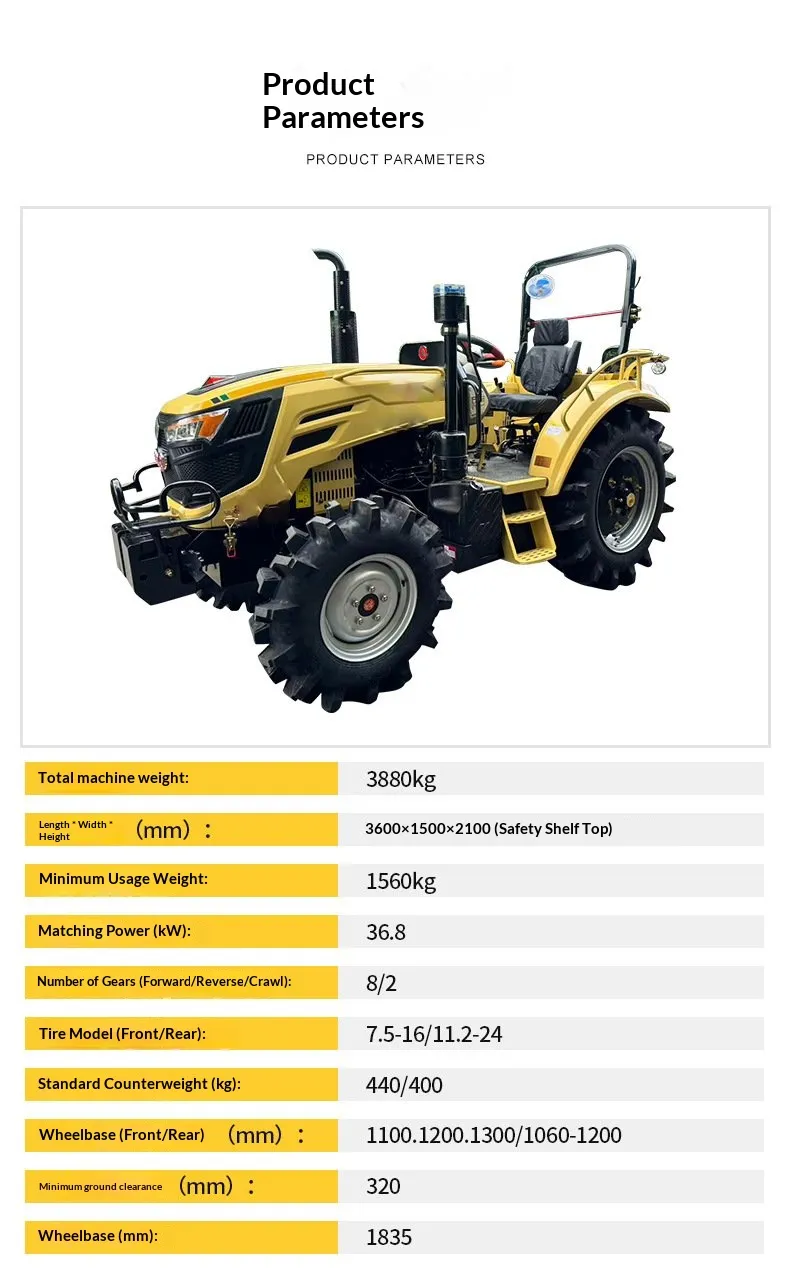

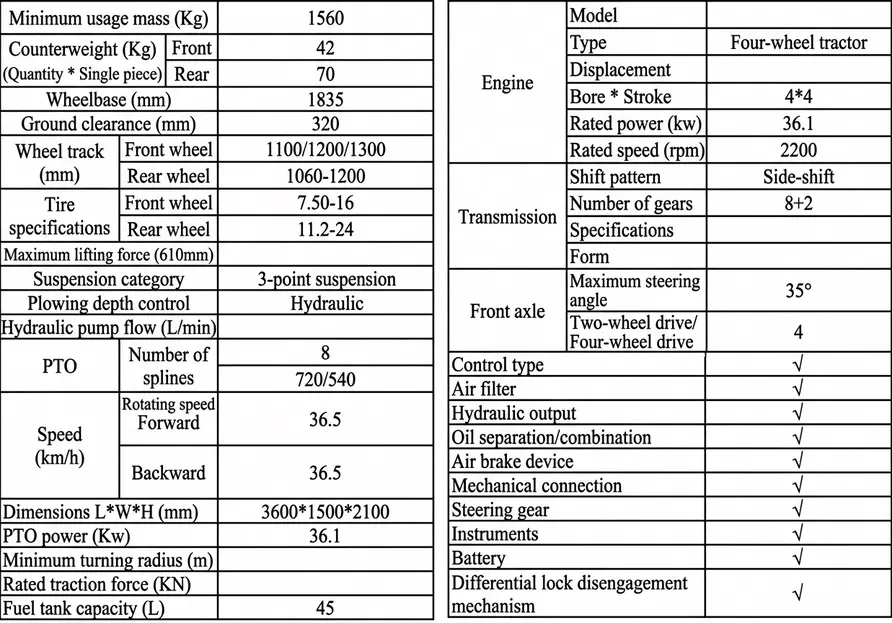

Detailed Specifications

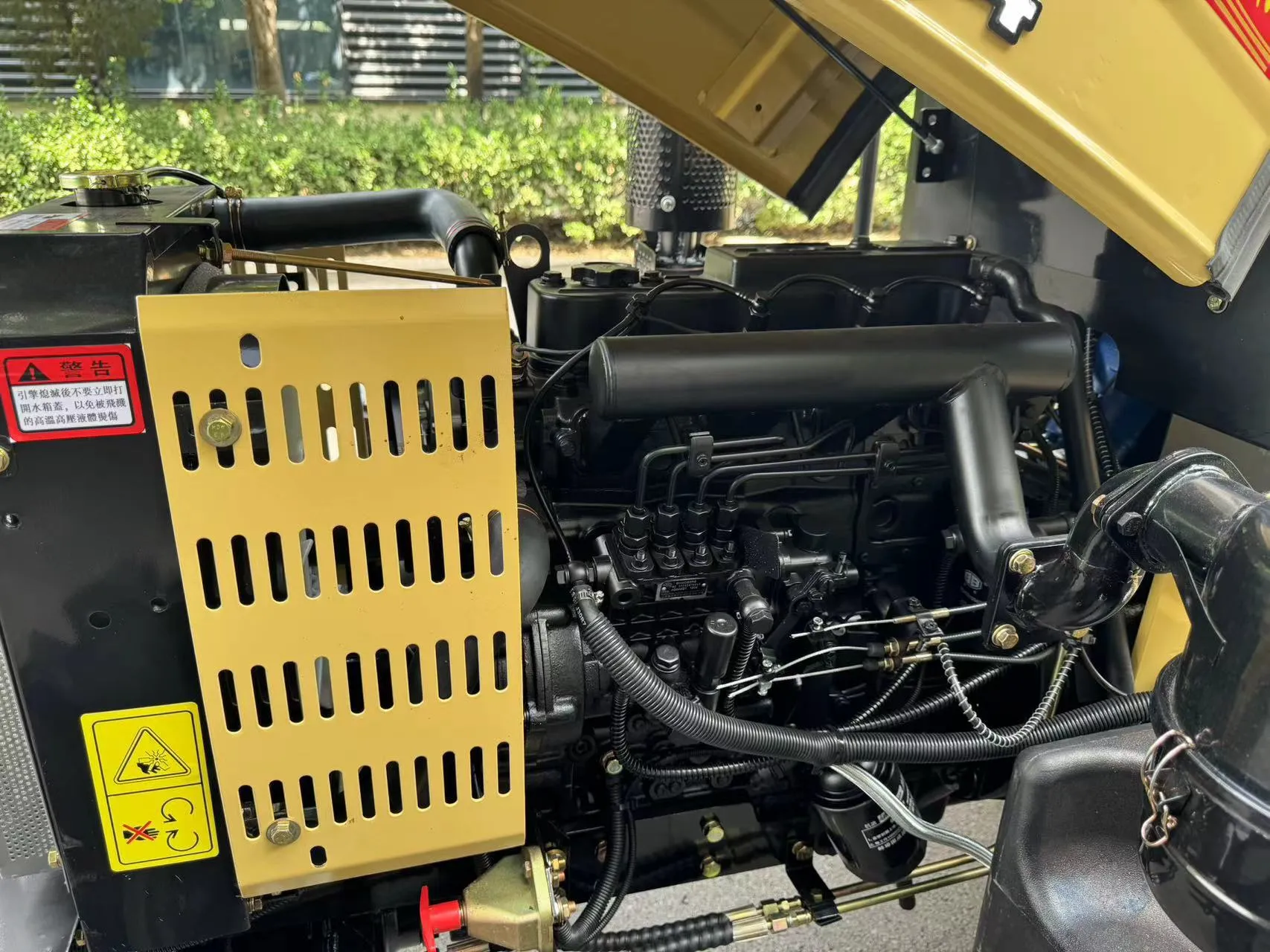

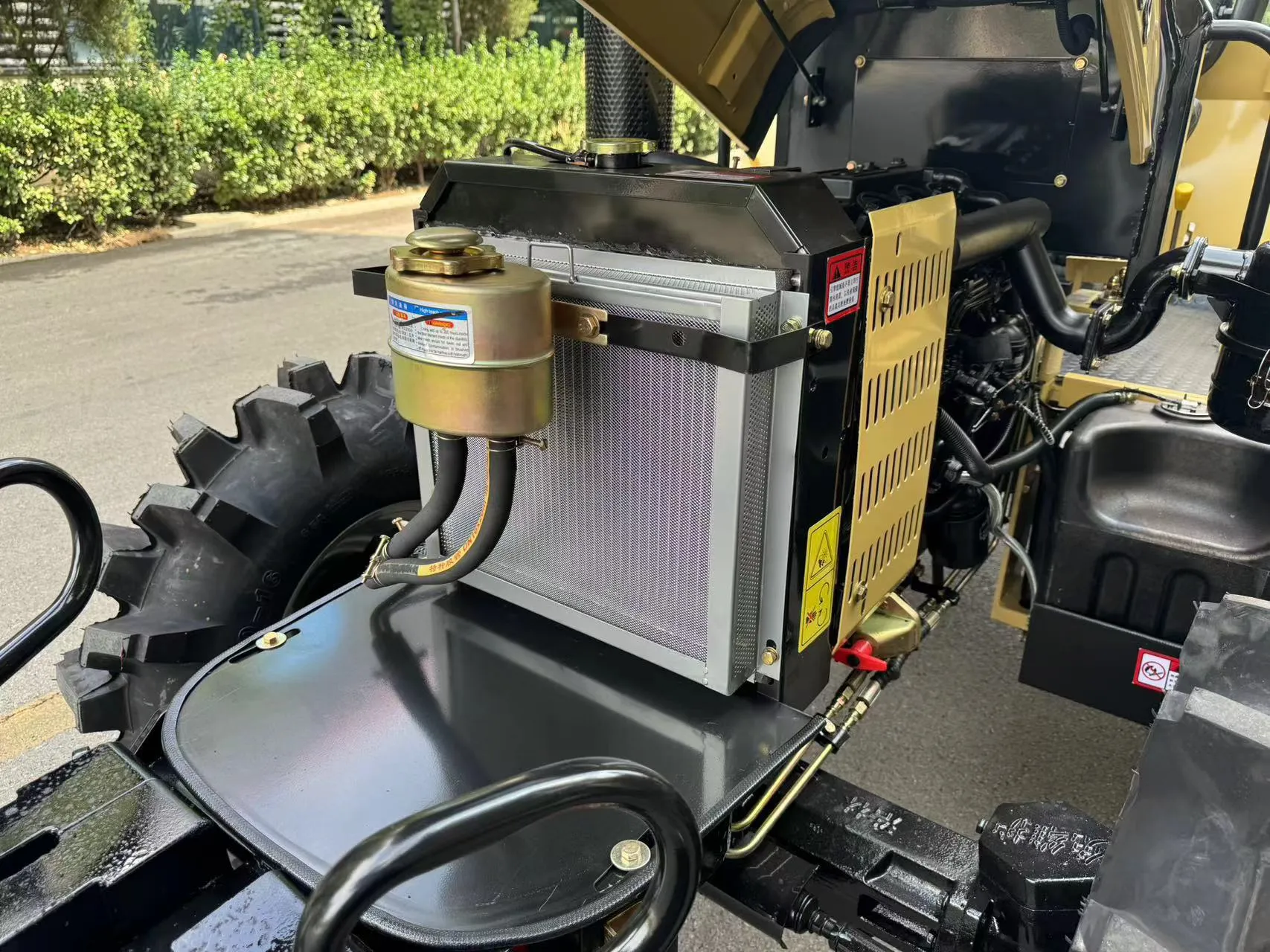

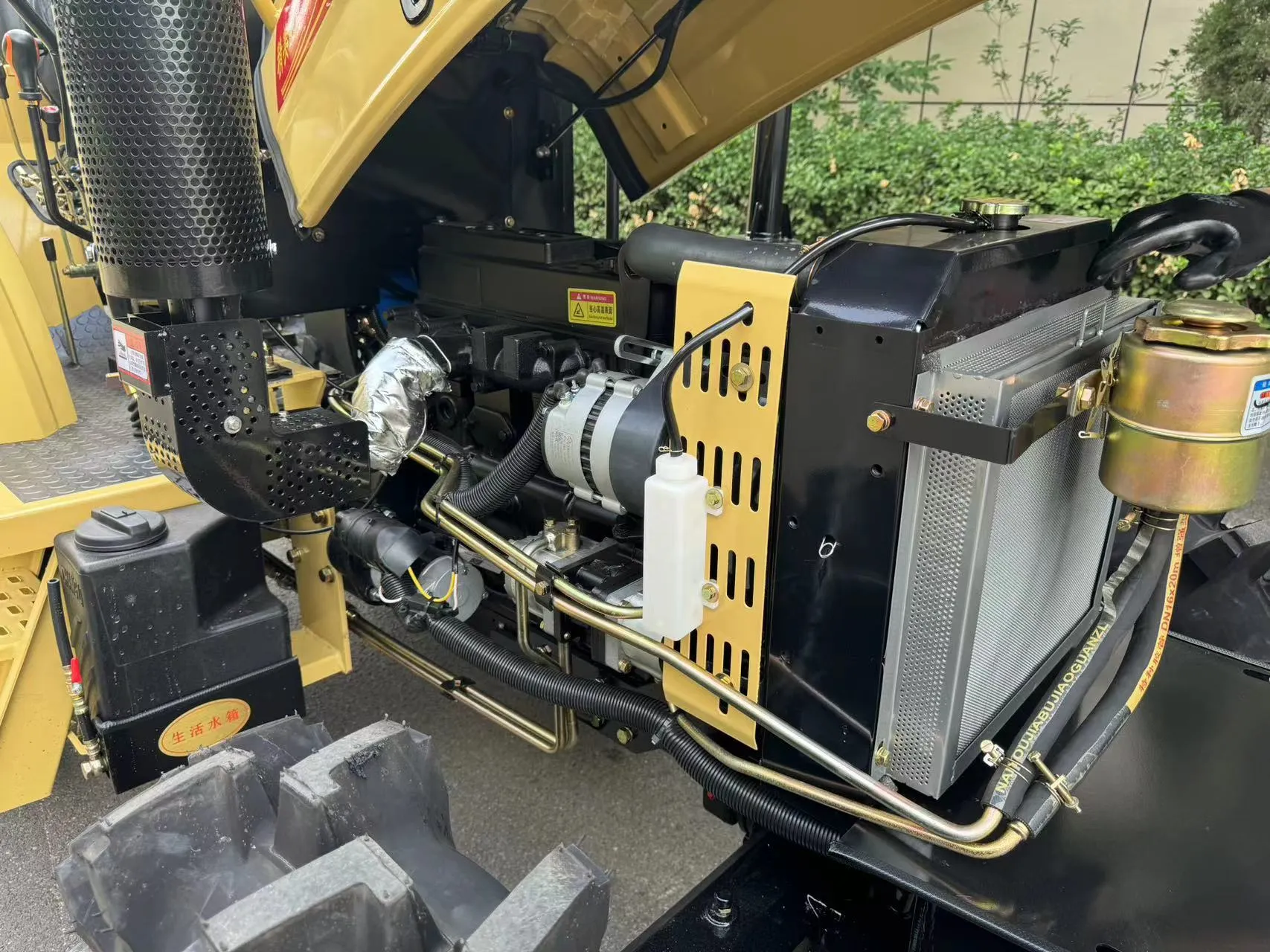

Engine: 4-Cylinder Diesel, 4-Stroke, Water-Cooled
Dimensions: 3.60M (L) * 1.50M (W) * 2.10M (H)
Parameters: Engine Model: Jiangsu Sida
Rated Power: 36.1 KW
Rated Speed: 2200 rpm
Displacement: 4-cylinder (Bore 4 x Stroke 4)
Drivetrain: 4WD with 35° Front Axle Max Steering Angle
Wheelbase: 1835MM + Ground Clearance 320MM
Transmission: Sliding Gear, 8 Forward + 2 Reverse
Speed Range: 36.5 km/h (Forward & Reverse)
Tires: Front 7.50-16 / Rear 11.2-24
Fuel Tank Capacity: 45 Liters
Hydraulic Flow: L/min
Hitch Type: 3-Point Linkage, Category II
PTO Speeds: 540 / 720 rpm (8 Spline)
Min. Operating Weight: 1560 Kg (without ballast)
Lifting Capacity (at 610mm): Standard Heavy Duty
Operator Features:
Instrumentation: Digital/Analog Dashboard (English Display)
Brake System: Air-Assisted Brakes (Air Over Hydraulic)
Steering: Full Hydraulic Power Steering
Additional: Differential Lock, Dual-Acting Clutch, Mechanical Linkage Steering Column, Battery Isolator Switch.
